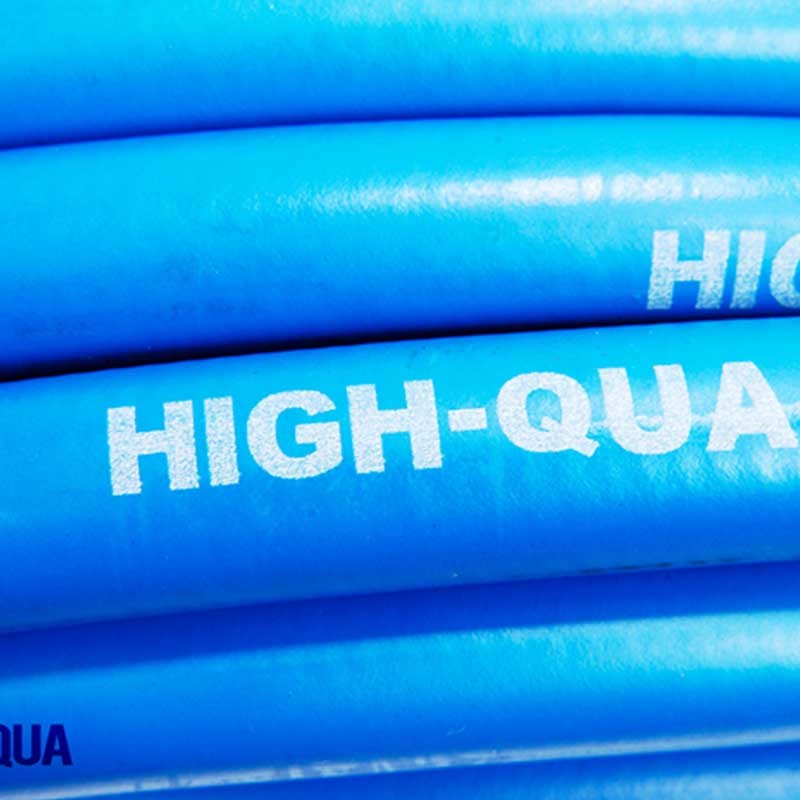

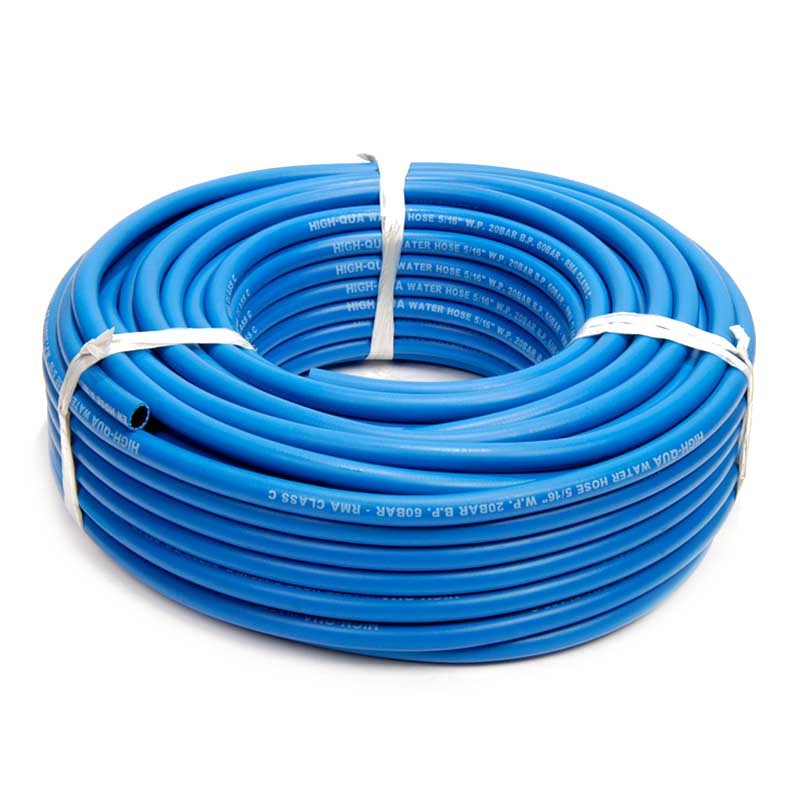

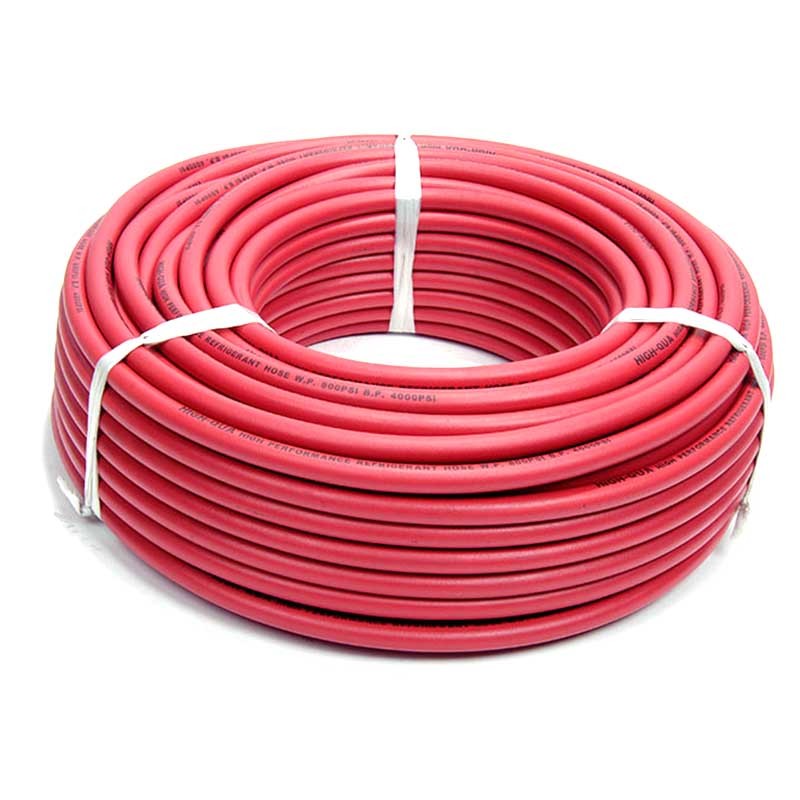

Rubber Water hose
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

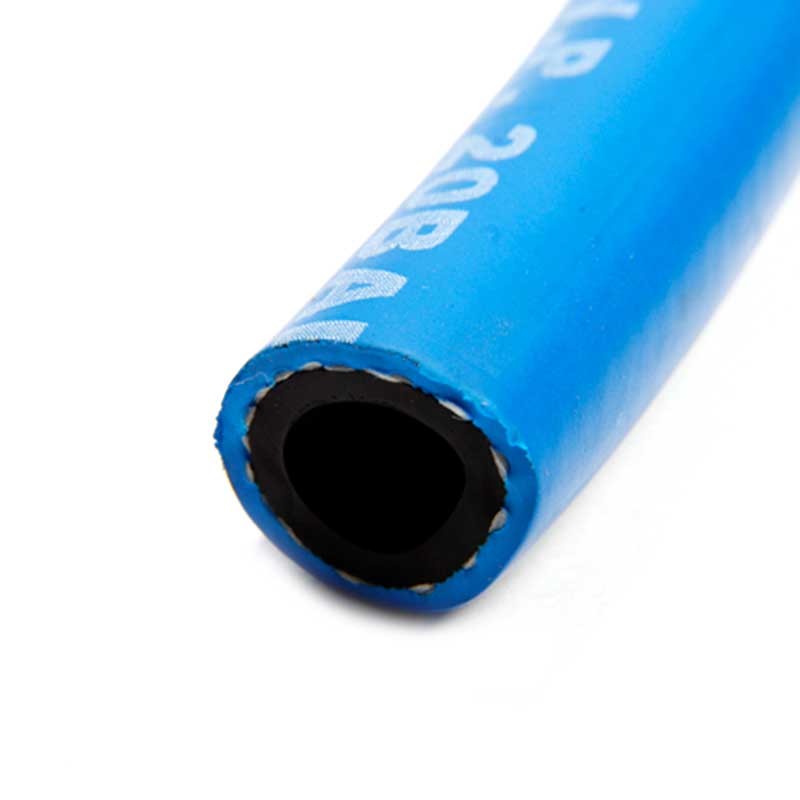

1.Construction:

-Tube: SBR / NR / EPDM

-Reinforcement: One or two layers of high strength fiber braid reinforcement.

-Cover: SBR / NR / EPDM

2. Temperature: -20℃ ~ 70℃

3. Application: For the transportation of high pressure air or water liquid.

4. Surface: Black or colorful; Fabric or smooth surface.


  PART NO.
Inner diameterI.D.Outer diameterO.D.Pressure of workW.P.Burst pressureW.P.Braid layerWeightUnit length
in.mmin.mmpsi.mpa.psi.mpa.plykg/mm/roll
HKW-033/16"4.80.45 11.5 3002.079006.2110.15100
HKW-041/4"6.40.63 16.0 3002.079006.2110.18100
HKW-055/16"7.90.59 15.0 3002.079006.2110.22100
HKW-063/8"9.50.75 19.1 3002.079006.2110.27100
HKW-081/2"12.70.91 23.1 3002.079006.2110.4100
HKW-105/8"15.90.96 24.5 3002.079006.2110.5100
HKW-123/4"19.11.14 29.0 3002.079006.2110.75100
HKW-12S3/4"19.11.18 30.0 3002.079006.2120.8100
HKW-161"25.41.42 36.1 3002.079006.2110.95100
HKW-16S1"25.41.42 36.1 3002.079006.2120.95100
HKW-201 1/4"31.81.75 44.5 3002.079006.2120.750
HKW-241 1/2"38.12.00 54.0 3002.079006.2120.8550


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
