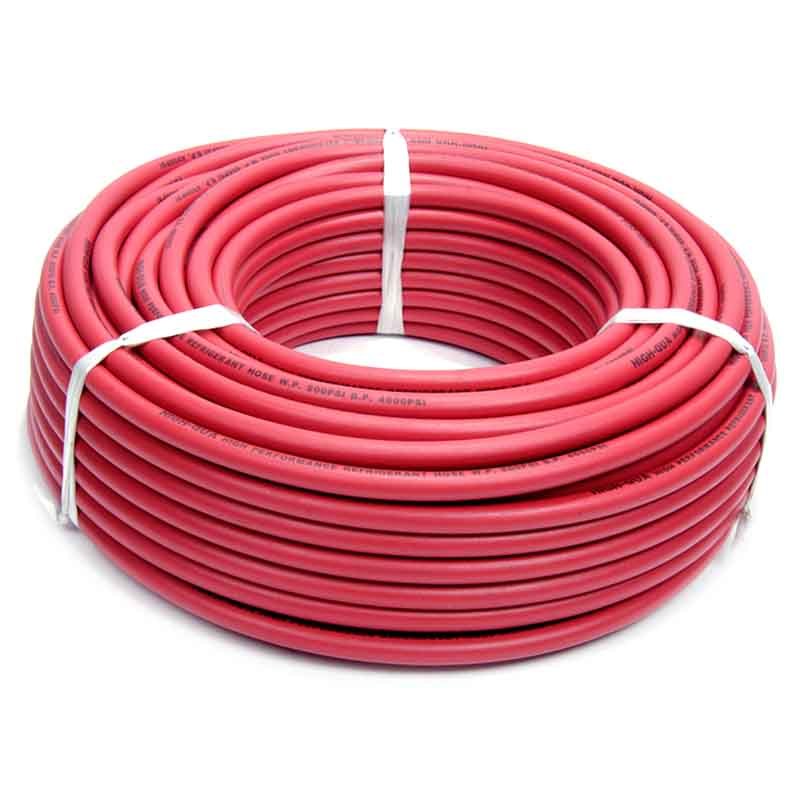

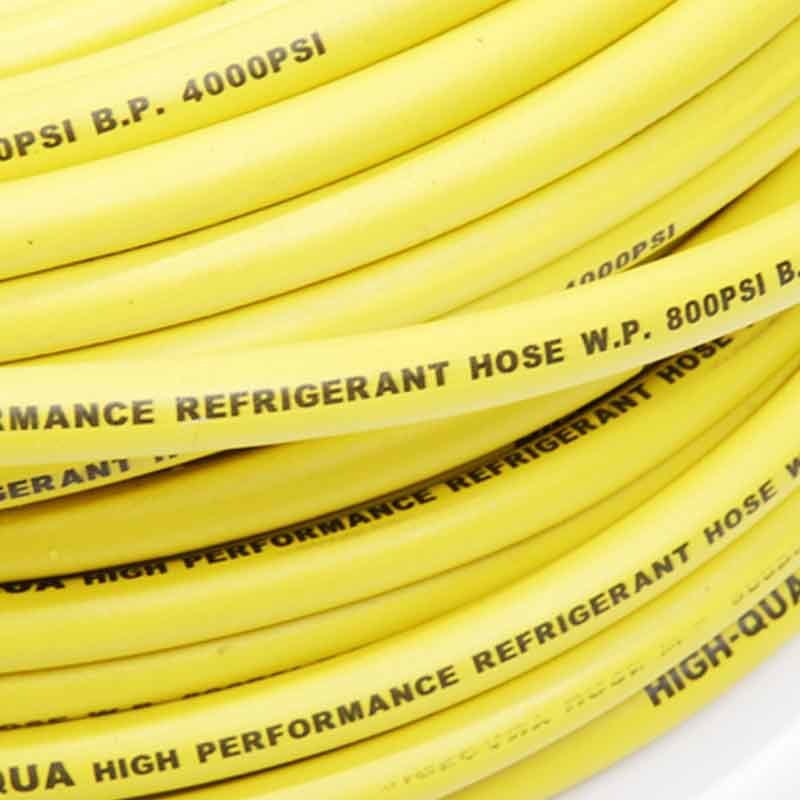

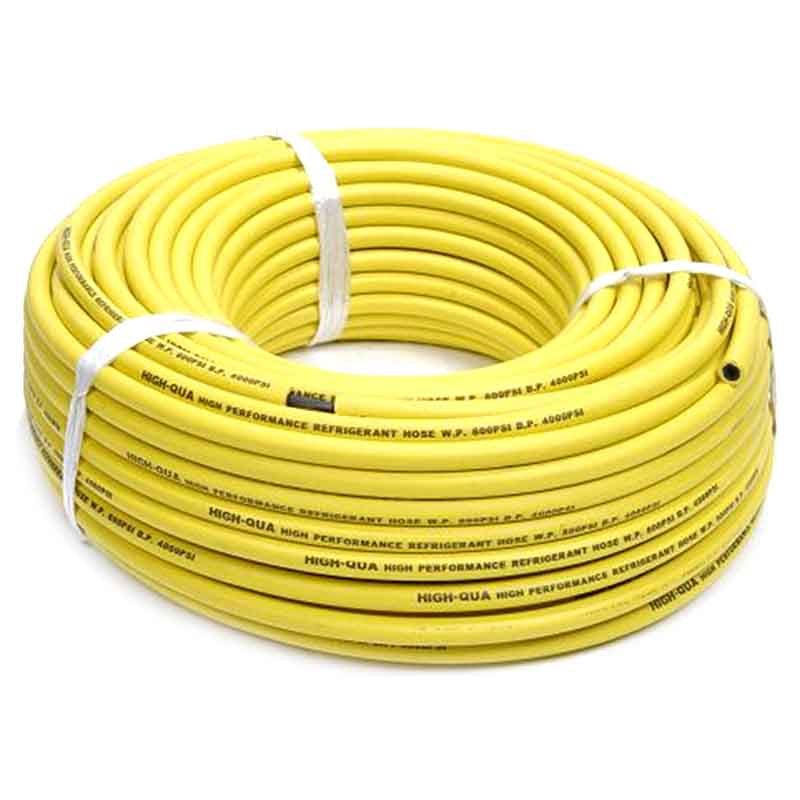

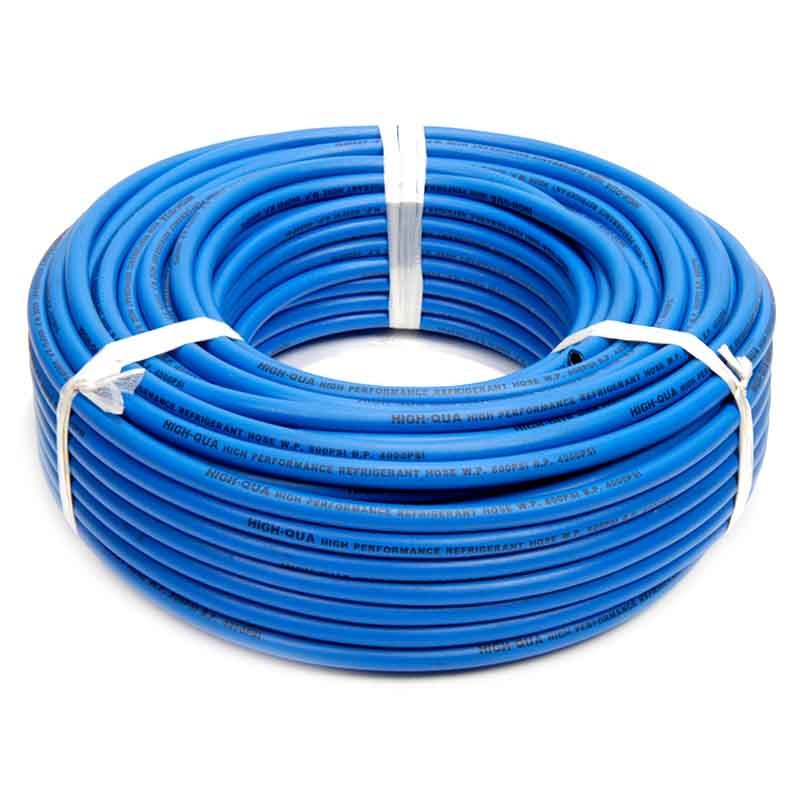

Freon Charging Hose
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

1.Construction:

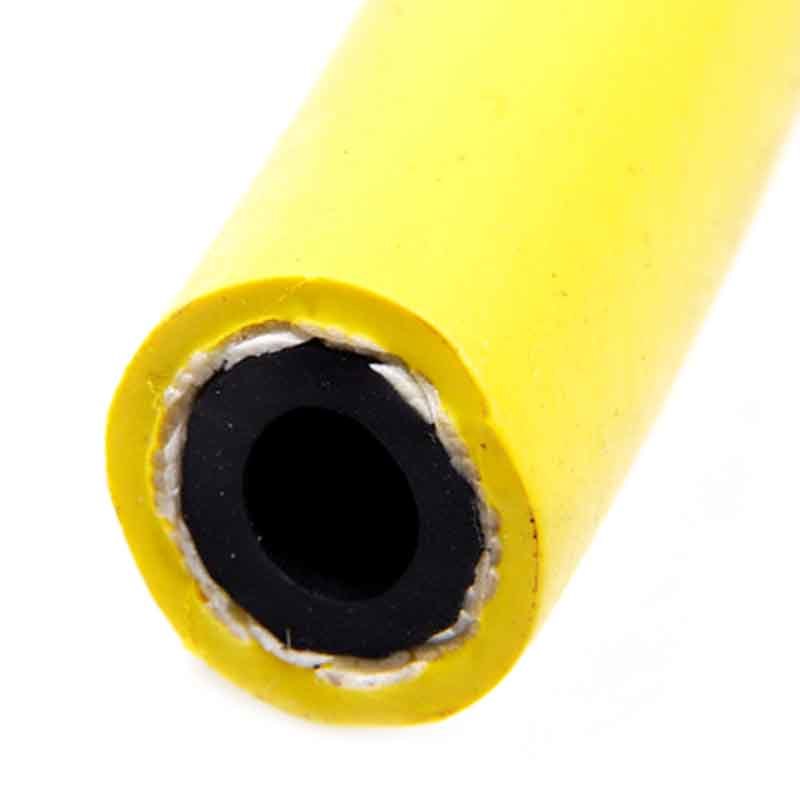

Interior lining is made up of special rubber formula which endure R12, R22, R502, R134a and other agent. Exterior lining is made up of whether-endurable rubber, strengthen lining is weaving fiber.

2. Temperature: -30℃ ~ 110℃

3. Application: R12, R22, R502, R134a medium etc. Widely use in vehicle air condition, air-condition industry freezing device.

4. Surface: Red, yellow, blue.


  PART NO.
Inner diameterI.D.Outer diameterO.D.Pressure of workW.P.Burst pressureW.P.Braid layerWeightUnit length
in.mmin.mmpsi.mpa.psi.mpa.plykg/mm/roll
HKF-033/16"4.80.45 11.0 5003.4 250017.2 20.13100
HKF-03S3/16"4.80.45 11.0 6004.1 300020.7 20.13100
HKF-03PS3/16"4.80.45 12.0 8005.5 400027.6 20.16100


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
