Factory Supplier Guaranted Quality Light High Performance Spring Guard Hose hose protect hose sleeves

Trade Terms:

FOB, CIF, CNF, EXW, DDU, DDP, etc.
Supply Ability:

600,000m / Month.
Port:

NINGBO.
Payment:

T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
Package:

By strength PP / woven film, or by pallet / reel / customized packages etc.
Shipping:

By sea, by air or by express etc.

Inquire Online

Specification

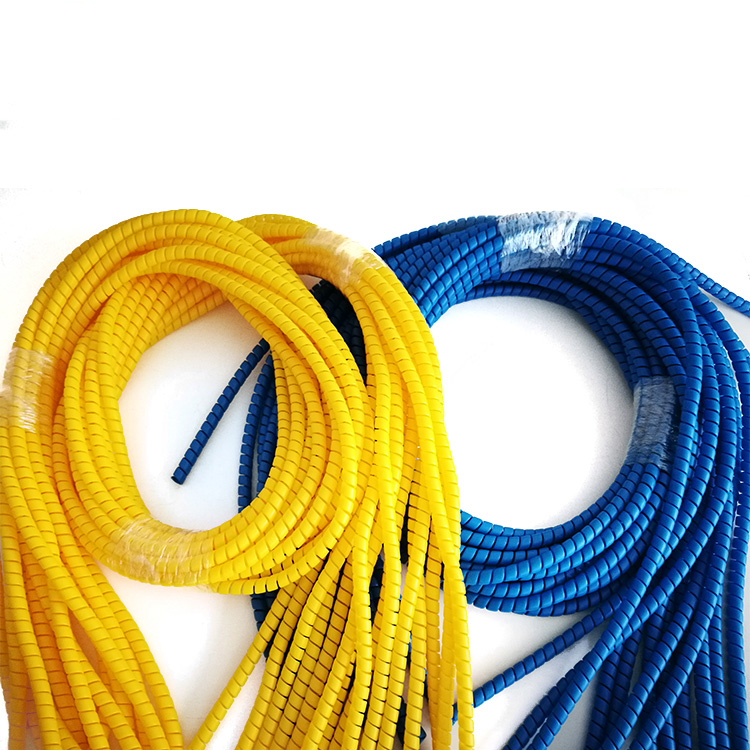

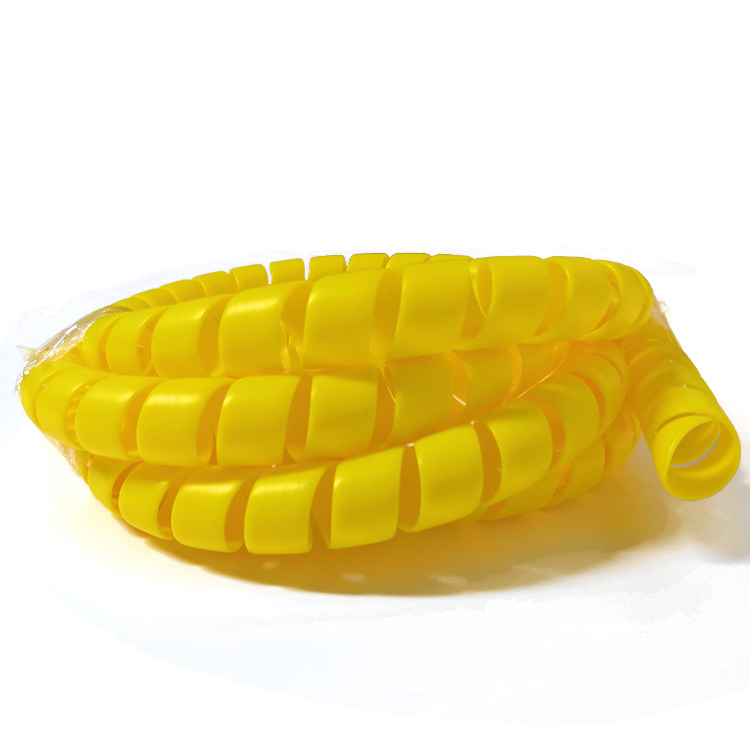

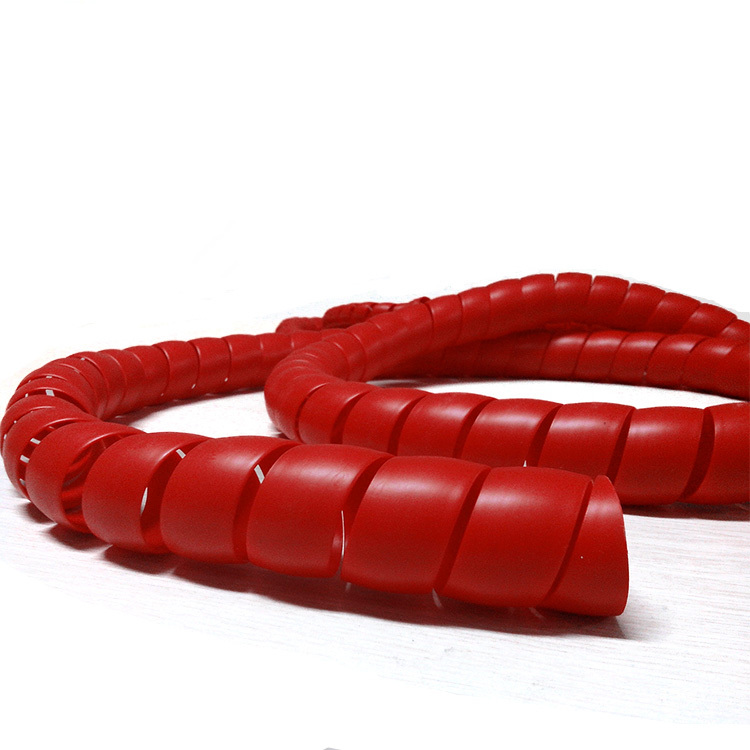

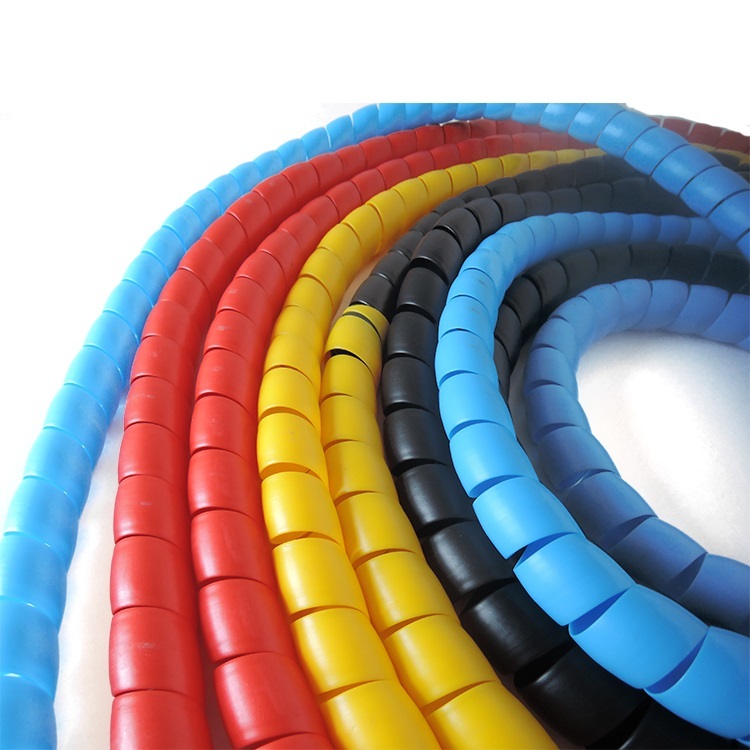

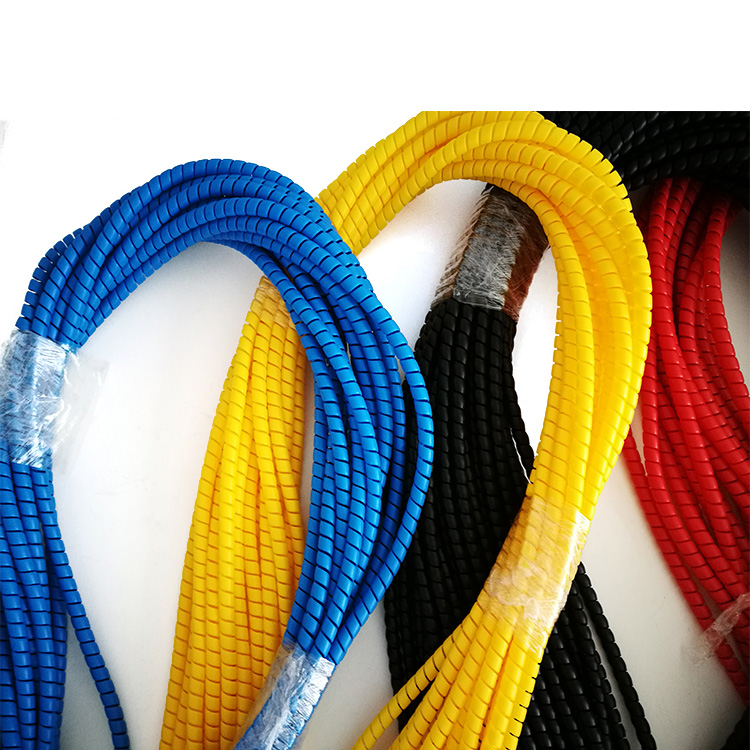

Spiral hose wrap can protect hose from abrasion when it being dragged on floor, or working in a vibrant environment, and extend its service life. It can also bundle your hose assemblies, such as wires and ethernet cables.

Main Features

1. Smooth and round edged

2. High wear resistance

3. Good UV resistance

4. Flexible in hot and cold weather (can use in -30 ℃ to +100 ℃)

5. Good chemical stability, oil resistance

6. Durable to harsh environments

7. Extend the service life of hydraulic hoses 3-5 years (up to the working environment)

Guard I.D (mm)	Suitable hose O.D (mm)	Thickness （mm)	Thread pitch width (mm)	Weight （kg/m）	Length （m/roll)	MOQ (m)
8	8、9	1.1	7	0.02	2 or 50	500
10	10、11	1.1	10	0.033	2 or 50	500
12	12 、13	1.1	12	0.038	2 or 50	500
14	14、15	1.5	13	0.043	2 or 50	500
16	16、17	1.5	15.5	0.06	2 or 50	500
18	18、19	1.8	16	0.07	2 or 50	500
20	20、21	1.8	16	0.075	2 or 50	500
21	21、22	1.8	16	0.075	2 or 50	500
22	23、24	2	19.5	0.085	2 or 50	500
25	25—27	2	22.5	0.11	2 or 50	500
28	28、29	2	23	0.14	2 or 50	500
30	30、31	2	23	0.15	2 or 50	500
32	32—34	2.2	23.5	0.16	2 or 10	500
35	35—37	2.2	24	0.18	2 or 10	500
38	38—42	2.5	28	0.20	2 or 10	500
42	42—45	2.5	28	0.23	2 or 10	500
45	45—49	2.5	28	0.25	2 or 10	500
50	50—59	3	28	0.35	2 or 10	500
60	60—73	3	28	0.47	2 or 10	500
74	74—79	3	46.5	0.68	2 or 10	500
80	80—87	4	48.5	0.80	2 or 10	500
88	88—99	4.5	50	0.85	2 or 10	500
100	100—130	4.5	57	0.95	2 or 10	500
130	130—150	4.5	50	1.50	2 or 10	500
150	150-200	4.5	50		2 or 10	500
200	200-250	5	50		2 or 10	500
