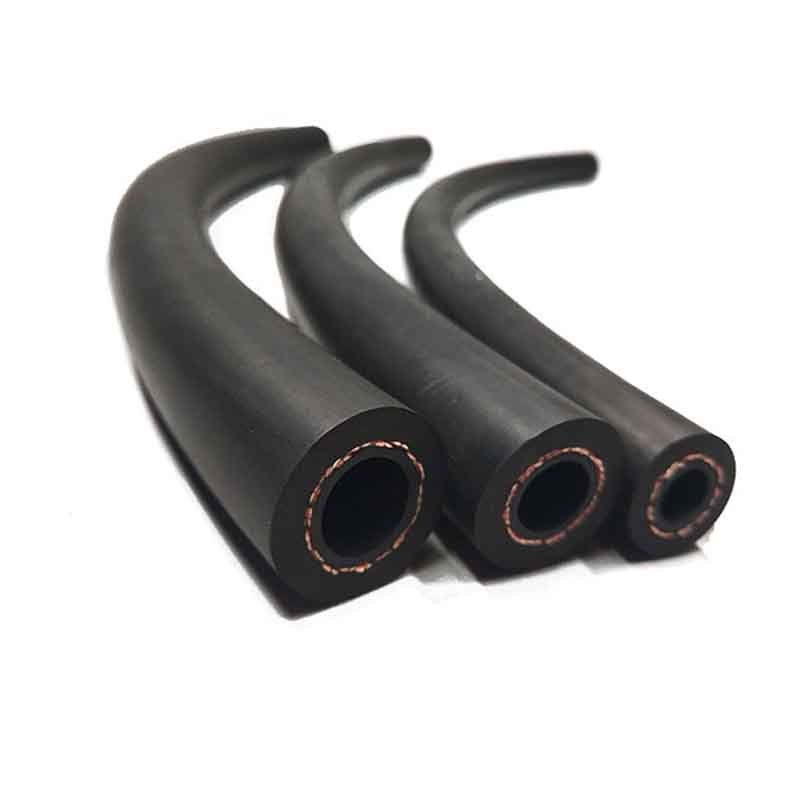

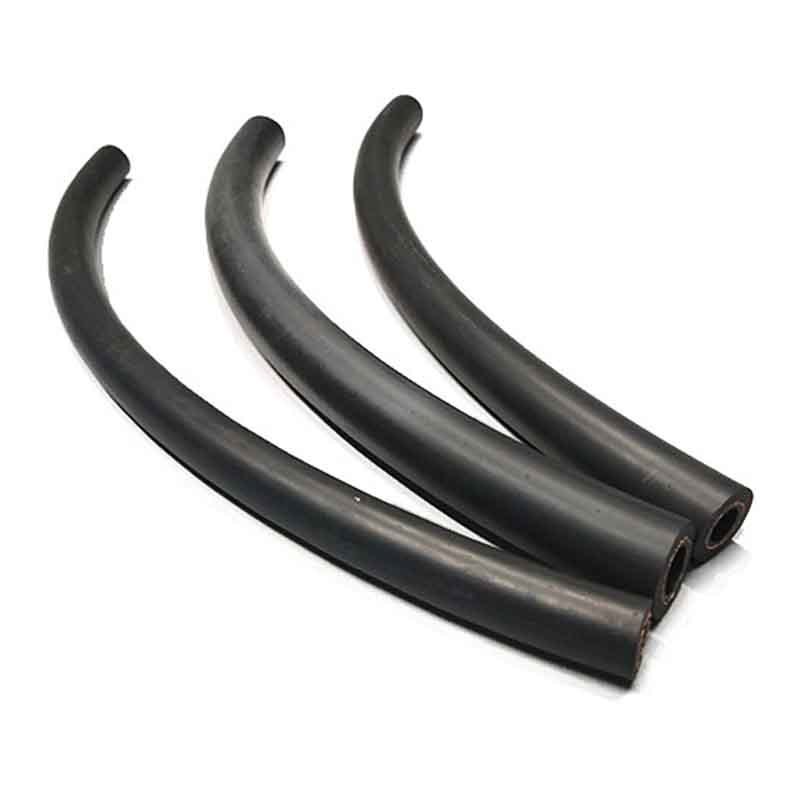

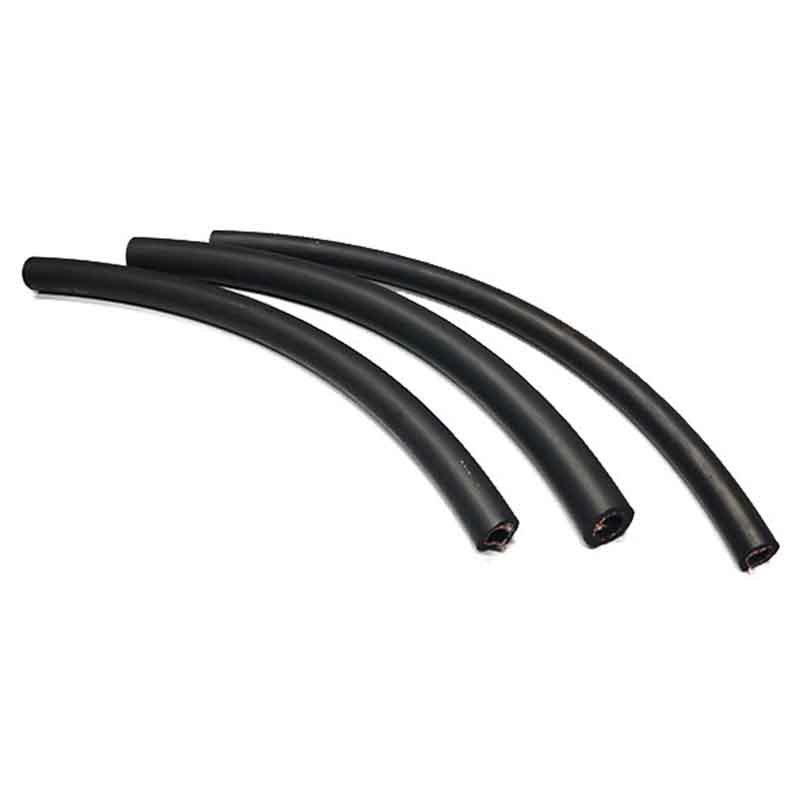

Air Condition Hose SAE J2064
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

1. Standard: SAE J2064

2. Certification: ISO/TS 16949:2009

3. Temperature: -40℃ ~ 135℃

4. Refrigerant: R134a, R12 etc

5. Features: Low permeability, pulse proof, aging resistance, ozone resistance, shock resistance etc.


  PART NO.
Inner diameterI.D.Outer diameterO.D.Pressure of workW.P.Burst pressureW.P.Braid layerWeightUnit length
in.mmin.mmpsi.mpa.psi.mpa.plykg/mm/roll
HKA-055/16"8.0±0.415.2±0.5508 3.5 333523550.1550
HKA-055/16"8.2±0.419.5±0.5508 3.5 304521700.2950
HKA-0813/32"10.5±0.423.0±0.5508 3.5 304521700.39350
HKA-107/16"11.4±0.418.4±0.5508 3.5 319022850.19650
HKA-081/2"13.0±0.421.0±0.5508 3.5 290020750.23150
HKA-101/2"13.0±0.423.0±0.5508 3.5 319022850.33250
HKA-121/2"13.0±0.425.4±0.5508 3.5 319022950.44150
HKA-12S5/8"15.2±0.423.0±0.5508 3.5 304521850.25750
HKA-165/8"16.1±0.428.6±0.5508 3.5 2610181050.4750


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
