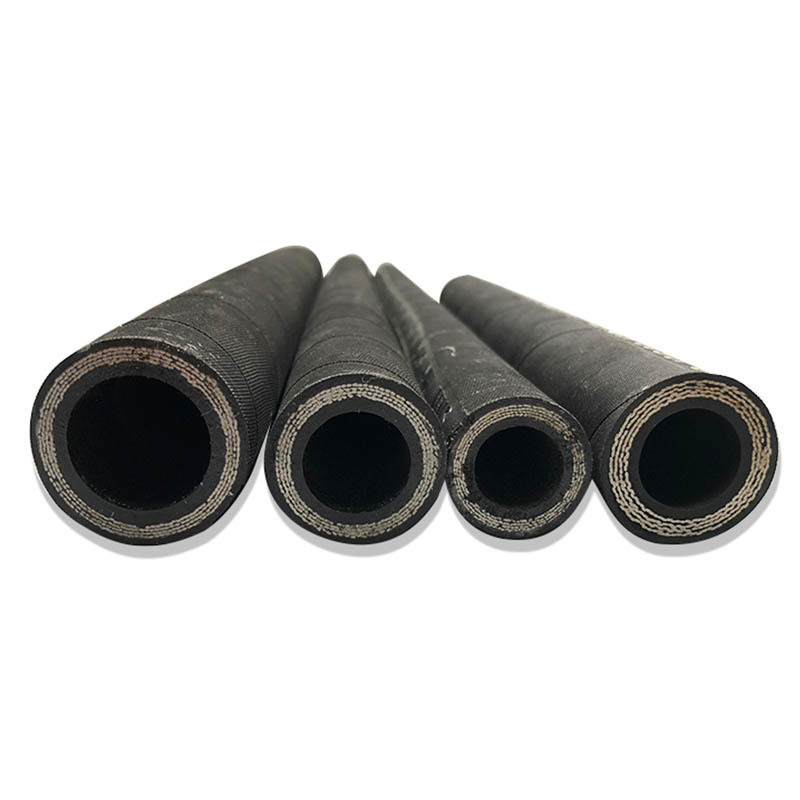

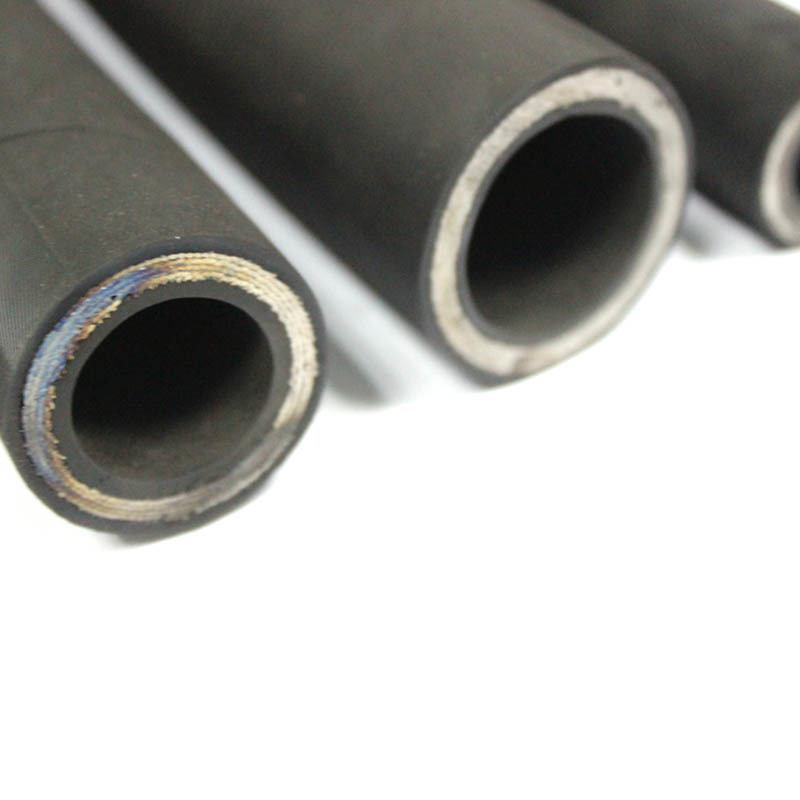

Four Wire Spiral Hydraulic Hose SAE100 R9AT
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

Application: Superior high pressure hydraulic hose applications including mineral oils, vegetable and repressed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water for heavy machines, mining fields, vehicles, hydraulic machines etc.

Inner tube: Oil resistance synthetic nitrile rubber (NBR).

Reinforcement: Four spirals of high-tensile steel wire.

Cover: Oil and environment resistant synthetic rubber.

Color and surface: Black, grey, blue, yellow, red, green, orange etc;

                              Fabric surface.

Temperature range: -40℉~ 212℉; -40℃ ~ 100℃

Equipment: Fork lift, heavy equipment, Press, hydraulic piping line (catapult).


Part NoBore
Hose I.D.Braid ODHose ODMax W.P.Min. B.P.Min. Bend Radius WeightWeight
inmmmminmmpsimpapsimpainmmkg/m
HQ-R9AT-06103/8"9.5 17.50.8422.2645031.525800177.971300.75
HQ-R9AT-08131/2"12.7 20.20.9625.460002824000165.591800.89
HQ-R9AT-12193/4"19.0 28.21.2640.950002120000137.9122801.5
HQ-R9AT-16251"25.4 35.51.5648.740002116000110.313.53552
HQ-R9AT-20321 1/4"31.8 46254.7304517.5121808418.14602.8
HQ-R9AT-24381 1/2"38.1 52.42.2568.22685141073074225603.4
HQ-R9AT-32502"50.8 65.32.7569.8239514957066307104.25


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
