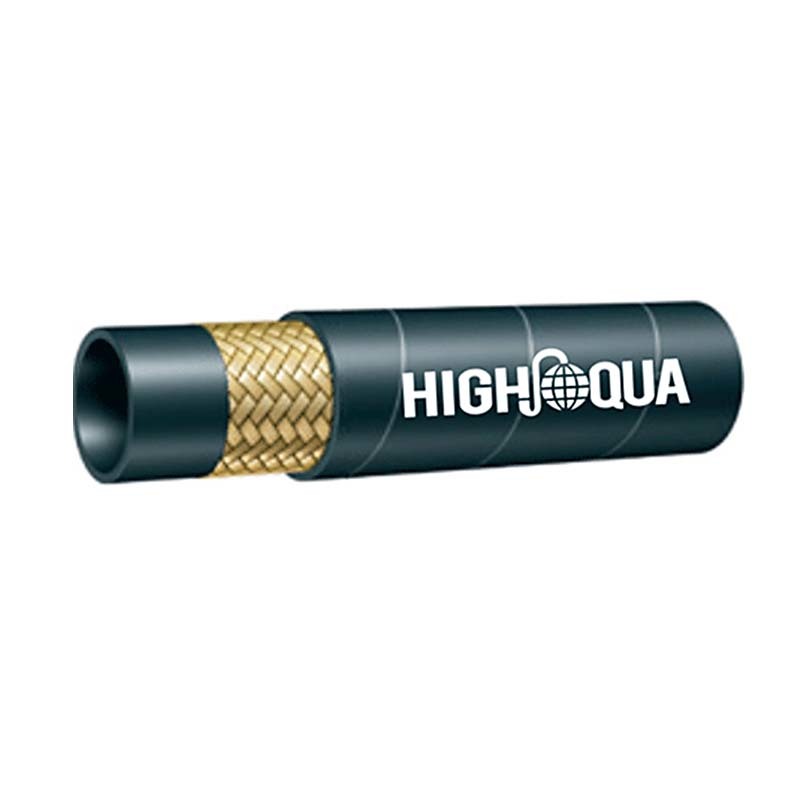

Single Wire Braided Hydraulic Hose DINEN853 1SN WG
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

Application: Superior high pressure hydraulic hose applications including mineral oils, vegetable and repressed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water for heavy machines, mining fields, vehicles, hydraulic machines etc.

Application: Superior high pressure hydraulic hose applications including mineral oils, vegetable and repressed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water for heavy machines, mining fields, vehicles, hydraulic machines etc.

Part NoBore
Hose I.D.Hose ODMax W.P.Min. B.P.Min. Bend Radius WeightWeight
inmminmmpsimpapsimpainmmkg/m
HQ-1SNWG-0461/4”6.4 0.5313.43625 25.0 13050 90.0 3.941000.23
HQ-1SNWG-0585/16"7.9 0.59153625 25.0 13050 90.0 4.531150.27
HQ-1SNWG-06103/8”9.5 0.6917.42900 20.0 10440 72.0 5.121300.35
HQ-1SNWG-08131/2"12.7 0.8120.62900 20.0 10150 70.0 7.091800.43


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.

CONTACT US FOR FREE SAMPLE!

If you can envision it, then we can build it, tell us more about your project, our service team will get back to you within 24 hours normally !
