15 Year Specialize in Hydraulic Hose And Industrial Hose
Home  >  Product

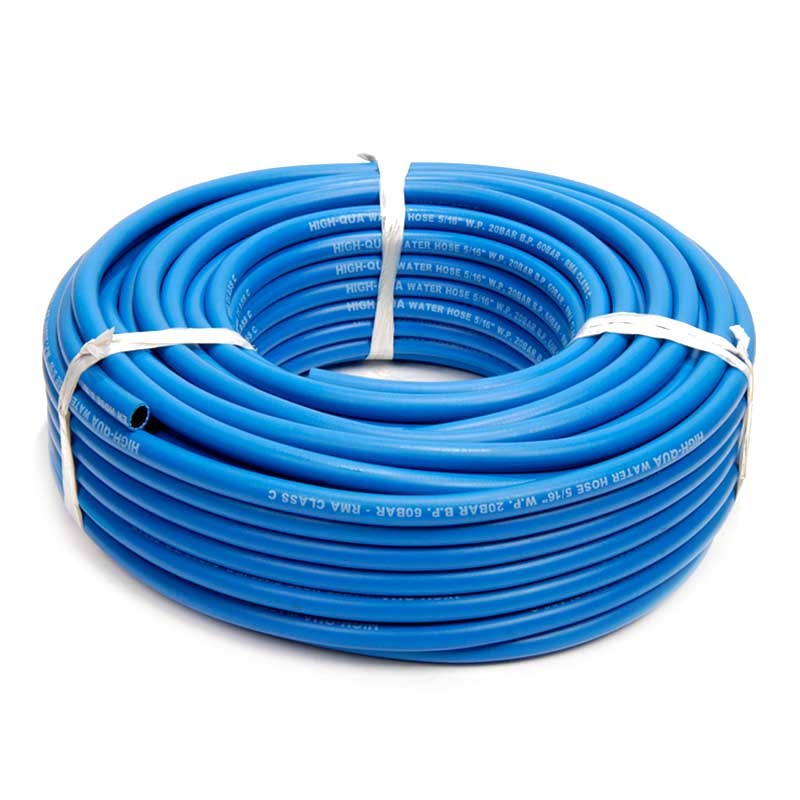

Rubber Water hose
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

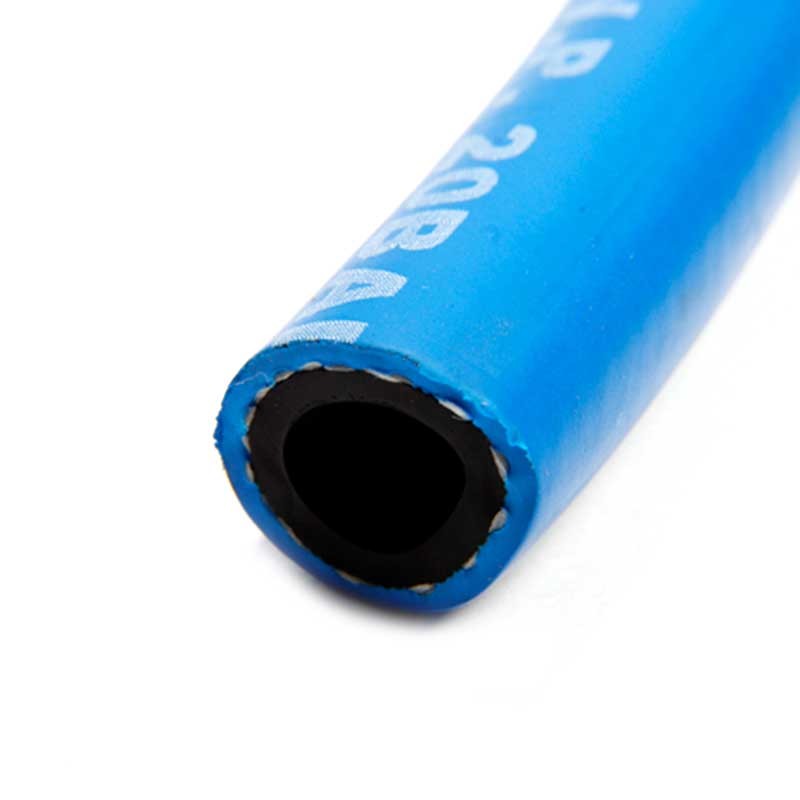

1.Construction:

-Tube: SBR / NR / EPDM

-Reinforcement: One or two layers of high strength fiber braid reinforcement.

-Cover: SBR / NR / EPDM

2. Temperature: -20℃ ~ 70℃

3. Application: For the transportation of high pressure air or water liquid.

4. Surface: Black or colorful; Fabric or smooth surface.


  PART NO.
Inner diameterI.D.Outer diameterO.D.Pressure of workW.P.Burst pressureW.P.Braid layerWeightUnit length
in.mmin.mmpsi.mpa.psi.mpa.plykg/mm/roll
HKW-033/16"4.80.45 11.5 3002.079006.2110.15100
HKW-041/4"6.40.63 16.0 3002.079006.2110.18100
HKW-055/16"7.90.59 15.0 3002.079006.2110.22100
HKW-063/8"9.50.75 19.1 3002.079006.2110.27100
HKW-081/2"12.70.91 23.1 3002.079006.2110.4100
HKW-105/8"15.90.96 24.5 3002.079006.2110.5100
HKW-123/4"19.11.14 29.0 3002.079006.2110.75100
HKW-12S3/4"19.11.18 30.0 3002.079006.2120.8100
HKW-161"25.41.42 36.1 3002.079006.2110.95100
HKW-16S1"25.41.42 36.1 3002.079006.2120.95100
HKW-201 1/4"31.81.75 44.5 3002.079006.2120.750
HKW-241 1/2"38.12.00 54.0 3002.079006.2120.8550


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.

CONTACT US FOR FREE SAMPLE!

If you can envision it, then we can build it, tell us more about your project, our service team will get back to you within 24 hours normally !

  • Do not allow empty
    Do not allow empty
  • Do not allow empty
