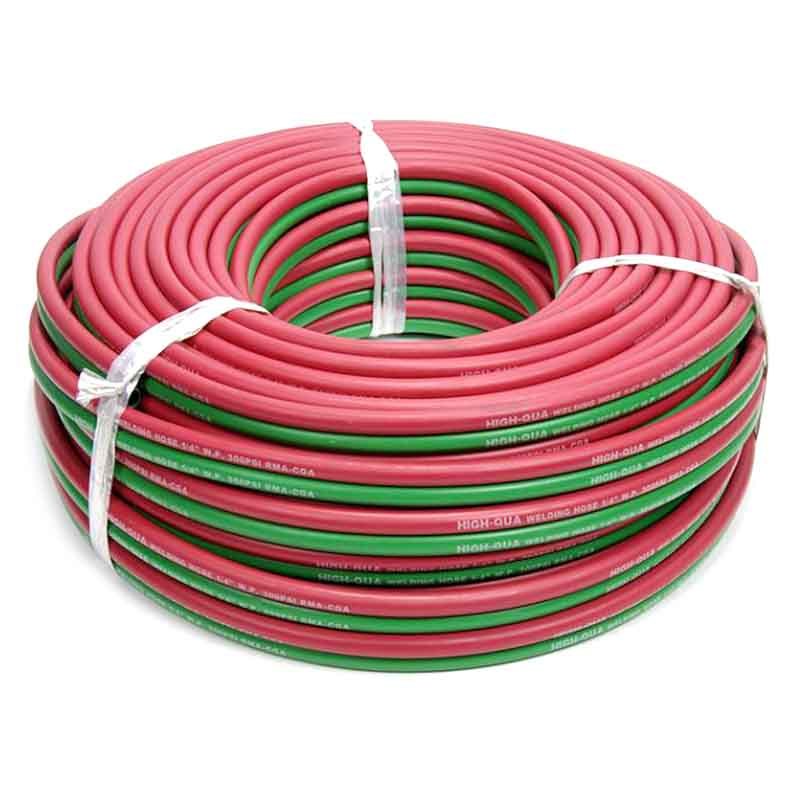

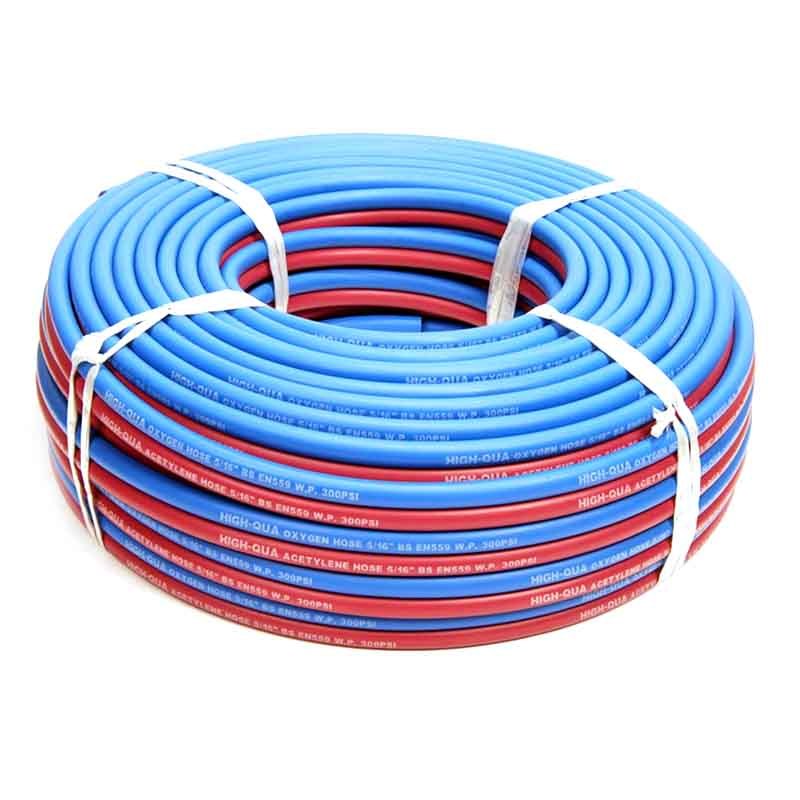

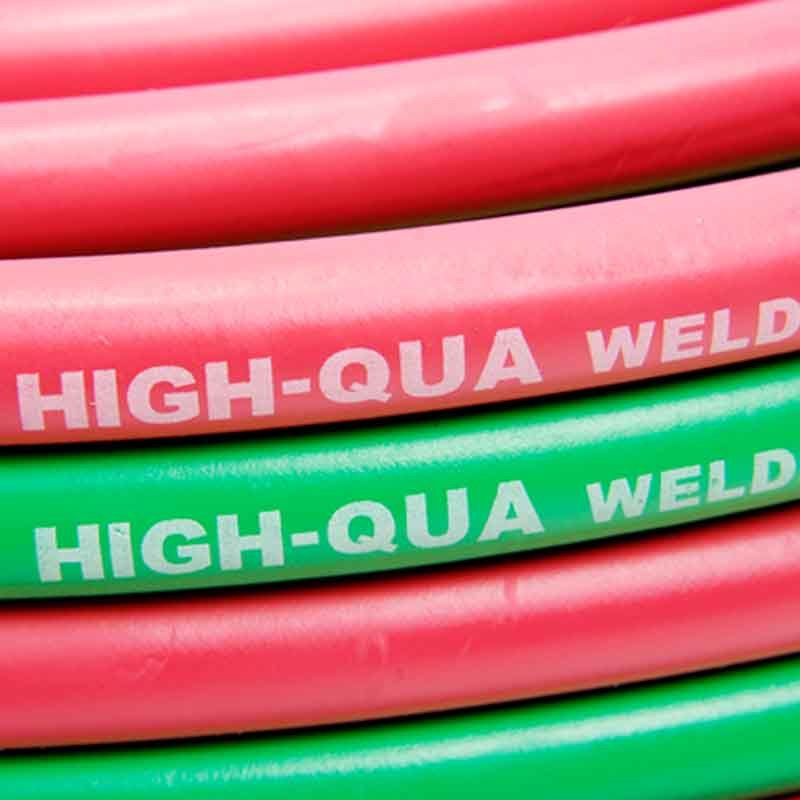

Rubber Welding Hose For Oxyegn/Acetylene/Propane
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

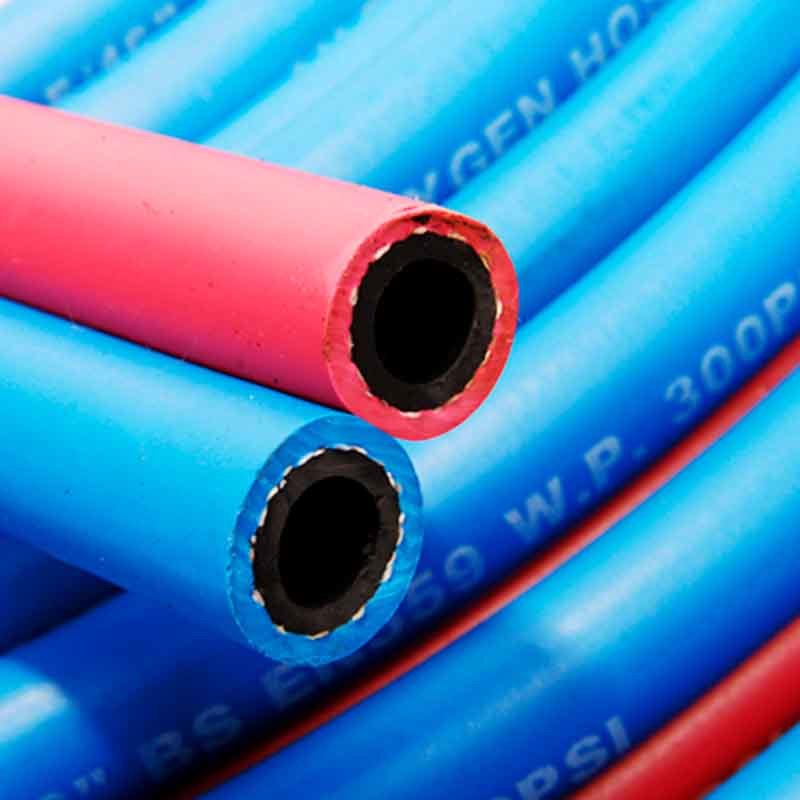

1.Construction:

-Tube: SBR / NBR / EPDM

-Reinforcement: One layer of high strength fiber braid reinforcement.

-Cover: SBR / NBR / EPDM

2. Structure: Interior lining + Exterior lining surface is mill finish. Strengthen lining is high strength weaving fiber.

3. Temperature: -20℃ ~ 70℃

4. Application: For gas soldering of Oxygen, Acetylene, Argon, Helium etc.

5. Surface: Double color (red, green), (red, blue) or client appoint.


  PART NO.
Inner diameterI.D.Outer diameterO.D.Pressure of workW.P.Burst pressureW.P.Braid layerWeightUnit length
in.mmin.mmpsi.mpa.psi.mpa.plykg/mm/roll
HKTW-033/16"4.80.45 11.5 3002.079006.2110.15100
HKTW-041/4"6.40.63 16.0 3002.079006.2110.18100
HKTW-055/16"7.90.59 15.0 3002.079006.2110.22100
HKTW-063/8"9.50.75 19.1 3002.079006.2110.27100


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
