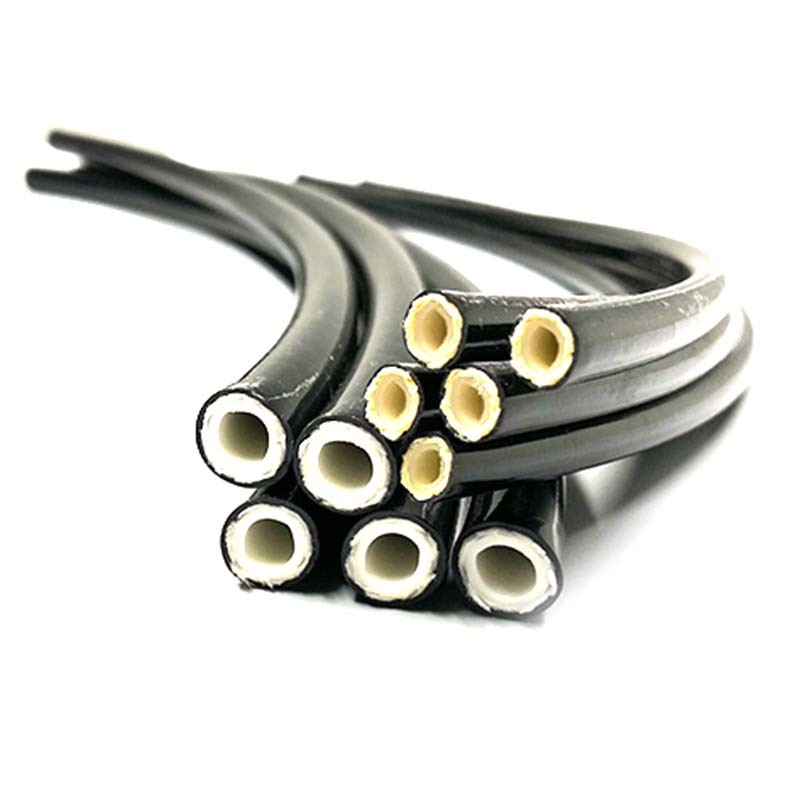

Thermoplastic Polyester Hydraulic Hose SAE100 R8
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!

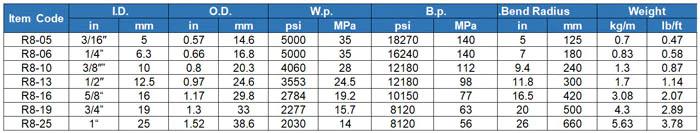

Specification

Tube: Thermoplastic polyester.

Reinforcement: One/two of braided high-resistance synthetic fiber or steel wire.

Cover: Abrasion, ozone and hydrocarbon resistant polyurethane.

Application: High pressure hydraulic lines, fuel oil, antifreeze solutions, air and water etc.

Constant operation: For hydraulic fluid -40°C ~ 93 °C (-40°F ~ 199°F);

For warer based fluids and air, max 65℃ (149°F).

Safety factor: 1:4

Standard: ISO 3949.2



Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
