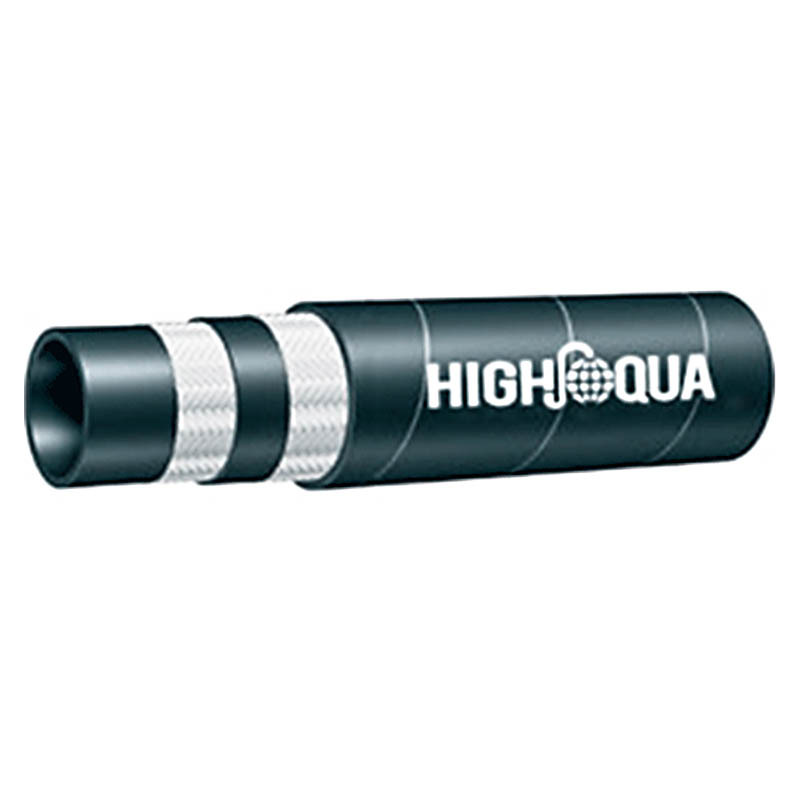

Two fiber Braided Hydraulic Hose DIN/EN 854 3TE
  • Trade Terms:
    FOB, CIF, CNF, EXW, DDU, DDP, etc.
  • Supply Ability:
    600,000m / Month.
  • Port:
    NINGBO.
  • Payment:
    T/T, L/C, PayPal, Western Union, Moneygram for offline orders.
  • Package:
    By strength PP / woven film, or by pallet / reel / customized packages etc.
  • Shipping:
    By sea, by air or by express etc.
Inquire Online
CONTACT US FOR FREE SAMPLE!
Specification

Application: Mineral oils, vegetable and repressed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water for heavy machines, mining fields, vehicles, hydraulic machines etc.

Inner tube: Oil resistance synthetic nitrile rubber (NBR).

Reinforcement: Two fiber braids of reinforcement.

Cover: Oil and environment resistant synthetic rubber.

Color and surface: Black, grey, blue, yellow, red, green, orange etc;

                              Fabric and smooth surface.

Temperature range: -40℉~ 212℉; -40℃ ~ 100℃


Part NoBore
Hose I.D.Braid ODMax W.P.Min. B.P.Min. Bend Radius Weight
inmminmmpsimpapsimpainmm
HQ-3TE-0343/16"4.8 0.512.82321169283641.640
HQ-3TE-0461/4"6.4 0.5714.5210314.58412581.845
HQ-3TE-0585/16"7.9 0.67171886137542522.255
HQ-3TE-06103/8"9.5 0.7318.51595116382442.870
HQ-3TE-08131/2"12.7 0.8621.813499.3539537.2375
HQ-3TE-10165/8"15.9 1.0226116084641324.1105
HQ-3TE-12193/4"19.0 1.1429101574061285.1130
HQ-3TE-16251"25.4 1.42367985.53191225.9150
HQ-3TE-20321 1/4"31.8 1.65426534.52611187.5190
HQ-3TE-24381 1/2"38.1 1.9549.558042321169.4240
HQ-3TE-32502"50.8 2.4662.24793.3191513.211.8300


Applications

Use in the construction, agriculture, forestry, underground or open pit mining or other industries on applications.
